Poisson Convergence Study: Unit Square with Circular Hole

This demo is implemented in demo_poisson_convergence.py. It illustrates:

  • How to perform a convergence study for the Poisson problem on an unfitted domain.

  • How to use Nitsche’s method for imposing boundary conditions weakly.

  • How to compute and analyze L² and H¹ error norms.

  • How to visualize convergence rates for different mesh refinements.

Problem Definition

We consider the Poisson problem on a domain \(\Omega \subset \mathbb{R}^2\) that is the unit square \([0,1]^2\) with a circular hole. The domain is defined implicitly as the complement of a disk:

\[\Omega = [0,1]^2 \setminus D_R(\mathbf{c}),\]

where \(D_R(\mathbf{c})\) is a disk of radius \(R = 0.2\) centered at \(\mathbf{c} = (0.5, 0.5)\). The Poisson problem reads:

\[\begin{split} \begin{align} -\nabla^{2} u &= f \quad \text{in } \Omega, \\ u &= u_D \quad \text{on } \Gamma_{D}, \\ \nabla u \cdot \mathbf{n} &= g \quad \text{on } \Gamma_{N}. \end{align} \end{split}\]

where \(\Gamma_D\) consists of the outer boundary (the four edges of the square) and \(\Gamma_N\) is the unfitted boundary (the circular hole).

Boundary Conditions

We have two options for imposing boundary conditions on the unfitted boundary \(\Gamma_N\):

  1. Neumann boundary conditions: Impose \(\nabla u \cdot \mathbf{n} = g\) directly in the linear form.

  2. Nitsche’s method: Weakly impose Dirichlet boundary conditions \(u = u_D\) on \(\Gamma_N\) using Nitsche’s method, which provides a consistent, symmetric, and stable formulation.

Nitsche’s Method

When using Nitsche’s method, the bilinear form is modified to include boundary terms:

\[\begin{split} \begin{align} a(u, v) &= \int_{\Omega} \nabla u \cdot \nabla v \, \mathrm{d}x - \int_{\Gamma_N} (\nabla u \cdot \mathbf{n}) v \, \mathrm{d}s - \int_{\Gamma_N} u (\nabla v \cdot \mathbf{n}) \, \mathrm{d}s + \frac{\beta}{h} \int_{\Gamma_N} u v \, \mathrm{d}s, \\ L(v) &= \int_{\Omega} f v \, \mathrm{d}x - \int_{\Gamma_N} u_D (\nabla v \cdot \mathbf{n}) \, \mathrm{d}s + \frac{\beta}{h} \int_{\Gamma_N} u_D v \, \mathrm{d}s, \end{align} \end{split}\]

where \(\beta > 0\) is a stabilization parameter (chosen here as \(\beta = 6k^2\) for polynomials of degree \(k\)), and \(h\) is the mesh size. The first boundary term ensures consistency, the second, symmetry, and the third provides stability.

Manufactured Solutions

The demo supports multiple manufactured solutions for different test cases. By default, we use:

\[u(x,y) = \sin(\pi x) \sin(\pi y),\]

which yields a non-zero right-hand side \(f = -\Delta u = 2\pi^2\sin(\pi x)\sin(\pi y)\) and non-zero Neumann boundary conditions on \(\Gamma_N\).

Other available solutions include:

  • Trigonometric functions with different combinations

  • Radial solutions that satisfy specific boundary conditions

  • Solutions with zero forcing terms or zero Neumann data

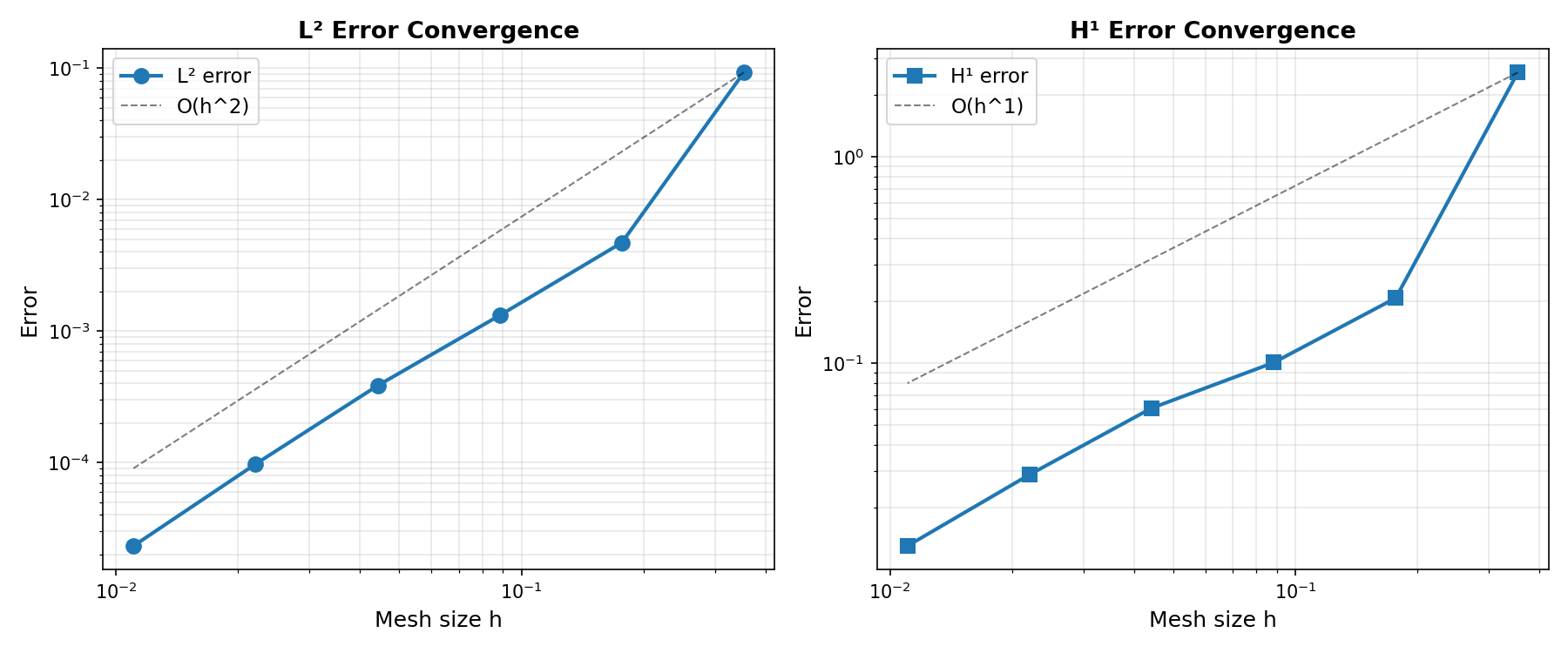

Convergence Analysis

For a finite element solution \(u_h\) using polynomial basis functions of degree \(k\), the expected convergence rates are:

  • L² error: \(\|u - u_h\|_{L^2(\Omega)} = \mathcal{O}(h^{k+1})\)

  • H¹ error: \(\|u - u_h\|_{H^1(\Omega)} = \mathcal{O}(h^k)\)

where \(h\) is the characteristic mesh size. These rates hold for smooth solutions when the mesh is sufficiently refined.

Implementation

Modules import

First we import the necessary modules:


from pathlib import Path

from mpi4py import MPI

import dolfinx.fem
import dolfinx.fem.petsc
import dolfinx.io
import numpy as np
import ufl

import qugar
import qugar.impl
from qugar.dolfinx import ds_bdry_unf, mapped_normal
from qugar.mesh import create_unfitted_impl_Cartesian_mesh
from qugar.utils import has_FEniCSx, has_PETSc

try:
    import matplotlib.pyplot as plt

    has_matplotlib = True
except ImportError:
    has_matplotlib = False

if not has_FEniCSx:
    raise ValueError("FEniCSx installation not found, required for this demo.")
if not has_PETSc:
    raise ValueError("petsc4py installation not found, required for this demo.")

Domain Definition

We define the domain as the unit square with a circular hole:


xmin = np.array([0.0, 0.0], dtype=np.float64)
xmax = np.array([1.0, 1.0], dtype=np.float64)
center = (xmin + xmax) / 2.0
R = 0.2

dtype = np.float64
impl_func = qugar.impl.create_negative(qugar.impl.create_disk(R, center=center))

Boundary Condition Method

Choose between Nitsche’s method (True) or Neumann boundary (False) conditions:

use_Nistche = True

Analytical Solution

Define the exact solution and select which one to use:

solution_id = 0  # ufl.sin(ufl.pi * x[0]) * ufl.sin(ufl.pi * x[1]) # f!=0, Neumann!=0
# solution_id = 1  # ufl.cos(ufl.pi * x[0]) * ufl.cos(ufl.pi * x[1]) # f!=0, Neumann!=0
# solution_id = 2  # ufl.exp(x[0]) * ufl.sin(x[1]) # f=0, Neumann!=0
# solution_id = 3  # (r - R) ** 2  # f!=0, Neumann=0.
# solution_id = 4  # -R * ufl.ln(r)  # f=0, Neumann=1.
# solution_id = 5  # (r - R) ** 2 - R * ufl.ln(r)  # f!=0, Neumann=1.


def u_exact_expr(x):
    """Exact displacement solution as a UFL expression."""

    def r():
        return ufl.sqrt((x[0] - center[0]) ** 2 + (x[1] - center[1]) ** 2)

    if solution_id == 0:
        return ufl.sin(ufl.pi * x[0]) * ufl.sin(ufl.pi * x[1])  # f!=0, Neumann!=0
    elif solution_id == 1:
        return ufl.cos(ufl.pi * x[0]) * ufl.cos(ufl.pi * x[1])  # f!=0, Neumann!=0
    elif solution_id == 2:
        return ufl.exp(x[0]) * ufl.sin(x[1])  # f=0, Neumann!=0
    elif solution_id == 3:
        return (r() - R) ** 2  # f!=0, Neumann=0.
    elif solution_id == 4:
        return -R * ufl.ln(r())  # f=0, Neumann=1.
    elif solution_id == 5:
        return (r() - R) ** 2 - R * ufl.ln(r())  # f!=0, Neumann=1.
    else:
        raise ValueError(f"Invalid solution id: {solution_id}")


def u_exact_numpy(x):
    """Exact displacement solution as a numpy function for error computation."""

    def r():
        return np.sqrt(np.pow(x[0] - center[0], 2) + np.pow(x[1] - center[1], 2))

    if solution_id == 0:
        return np.sin(np.pi * x[0]) * np.sin(np.pi * x[1])
    elif solution_id == 1:
        return np.cos(np.pi * x[0]) * np.cos(np.pi * x[1])
    elif solution_id == 2:
        return np.exp(x[0]) * np.sin(x[1])
    elif solution_id == 3:
        return np.pow(r() - R, 2)  # f != 0, Neumann=0.
    elif solution_id == 4:
        return -R * np.log(r())  # f = 0, Neumann=1.
    elif solution_id == 5:
        return np.pow(r() - R, 2) - R * np.log(r())  # f != 0, Neumann=1.
    else:
        raise ValueError(f"Invalid solution id: {solution_id}")

Boundary DOF Location

Function to locate degrees of freedom on the outer boundary facets:

def locate_boundary_dofs(unf_mesh, V):
    dim = unf_mesh.topology.dim

    # Left boundary (x=-0.5)
    left_facets = dolfinx.mesh.locate_entities_boundary(
        unf_mesh, dim=(dim - 1), marker=lambda x: np.isclose(x[0], xmin[0])
    )
    left_dofs = dolfinx.fem.locate_dofs_topological(V=V, entity_dim=1, entities=left_facets)

    # Bottom boundary (y=-0.5)
    bottom_facets = dolfinx.mesh.locate_entities_boundary(
        unf_mesh, dim=(dim - 1), marker=lambda x: np.isclose(x[1], xmin[1])
    )
    bottom_dofs = dolfinx.fem.locate_dofs_topological(V=V, entity_dim=1, entities=bottom_facets)

    # Right boundary (x=0.5)
    right_facets = dolfinx.mesh.locate_entities_boundary(
        unf_mesh, dim=(dim - 1), marker=lambda x: np.isclose(x[0], xmax[0])
    )
    right_dofs = dolfinx.fem.locate_dofs_topological(V=V, entity_dim=1, entities=right_facets)

    # Top boundary (y=0.5)
    top_facets = dolfinx.mesh.locate_entities_boundary(
        unf_mesh, dim=(dim - 1), marker=lambda x: np.isclose(x[1], xmax[1])
    )
    top_dofs = dolfinx.fem.locate_dofs_topological(V=V, entity_dim=1, entities=top_facets)

    return left_dofs, right_dofs, bottom_dofs, top_dofs

Solve Function

Function to solve the Poisson problem for a given mesh resolution:

def solve_poisson(n_cells, degree=1):
    unf_mesh = create_unfitted_impl_Cartesian_mesh(
        MPI.COMM_WORLD,
        impl_func,
        n_cells,
        xmin,
        xmax,
        exclude_empty_cells=True,
        dtype=dtype,
    )

    V = dolfinx.fem.functionspace(unf_mesh, ("Lagrange", degree))

    u, v = ufl.TrialFunction(V), ufl.TestFunction(V)

    x = ufl.SpatialCoordinate(unf_mesh)
    u_exact = u_exact_expr(x)
    gradu_exact = ufl.grad(u_exact)
    f_exact = -ufl.div(gradu_exact)

    u_D = dolfinx.fem.Function(V)
    u_D.interpolate(lambda x: u_exact_numpy(x))
    bcs = [dolfinx.fem.dirichletbc(u_D, dofs) for dofs in locate_boundary_dofs(unf_mesh, V)]

    dx = ufl.dx(domain=unf_mesh)
    n_unf = mapped_normal(unf_mesh)
    ds_unf = ds_bdry_unf(domain=unf_mesh)

    # Bilinear form: a(u,v) = ∫_Ω ∇u·∇v dx
    a = ufl.inner(ufl.grad(u), ufl.grad(v)) * dx

    if use_Nistche:
        # Bilinear form: a(u,v) = ∫_Ω ∇u·∇v dx- ∫_Γ_N ∇u·n * v ds
        # - ∫_Γ_N u * ∇v·n ds + β/h ∫_Γ_N u v ds
        h = np.linalg.norm(xmax - xmin) / n_cells
        beta = 6 * degree**2
        gradu_n = ufl.dot(ufl.grad(u), n_unf)
        gradv_n = ufl.dot(ufl.grad(v), n_unf)
        a -= gradu_n * v * ds_unf  # consistency
        a -= u * gradv_n * ds_unf  # symmetry
        a += beta / h * u * v * ds_unf  # stability

    # Linear form: L(v) = ∫_Ω f v dx + ...
    L = ufl.dot(f_exact, v) * dx

    if use_Nistche:
        # Linear form: L(v) = ∫_Ω f v dx - ∫_Γ_N u_exact ∇v·n ds + β/h ∫_Γ_N u_exact * v ds
        L += beta / h * u_exact * v * ds_unf
        L -= u_exact * gradv_n * ds_unf
    else:  # Neumann
        # Linear form: L(v) = ∫_Ω f v dx + ∫_Γ_N ∇(u_exact)·n v ds
        gradu_exact_n = ufl.dot(gradu_exact, n_unf)
        L += ufl.dot(gradu_exact_n, v) * ds_unf

    petsc_options = {
        "ksp_type": "preonly",
        "pc_type": "cholesky",
        "ksp_diagonal_scale": True,  # Jacobi preconditioner
    }

    problem = qugar.dolfinx.LinearProblem(a, L, bcs=bcs, petsc_options=petsc_options)
    uh = problem.solve()

    return unf_mesh, uh, V

Error Computation

Function to compute L² and H¹ error norms:

def compute_l2_h1_errors(uh, unf_mesh):
    """Compute L² error: ||u_h - u_exact||_L² and H¹ error: ||u_h - u_exact||_H¹"""
    x = ufl.SpatialCoordinate(unf_mesh)
    u_exact = u_exact_expr(x)
    error = uh - u_exact
    grad_error = ufl.grad(error)

    dx = ufl.dx(domain=unf_mesh)

    # Compute L² norm using appropriate quadrature
    L2_error_form = error * error * dx
    L2_error_form = qugar.dolfinx.form_custom(L2_error_form)
    L2_error = np.sqrt(
        dolfinx.fem.assemble_scalar(L2_error_form, coeffs=L2_error_form.pack_coefficients())
    )

    # H¹ semi norm = grad L²
    semi_H1_error_form = ufl.dot(grad_error, grad_error) * dx
    semi_H1_error_form = qugar.dolfinx.form_custom(semi_H1_error_form)

    semi_H1_error = np.sqrt(
        dolfinx.fem.assemble_scalar(
            semi_H1_error_form, coeffs=semi_H1_error_form.pack_coefficients()
        )
    )
    # H¹ norm = L² + grad L²
    H1_error = L2_error + semi_H1_error

    return L2_error, H1_error

Visualization

Function to visualize the solution on a reparameterized mesh:

def visualize_solution(mesh, uh, V, name, rep_degree=3):
    """Visualize the solution."""
    reparam = qugar.reparam.create_reparam_mesh(mesh, degree=rep_degree, levelset=False)
    rep_mesh = reparam.create_mesh()
    rep_mesh_wb = reparam.create_mesh(wirebasket=True)
    dim = mesh.topology.dim

    Vrep = dolfinx.fem.functionspace(rep_mesh, ("CG", rep_degree, (dim,)))
    Vrep_wb = dolfinx.fem.functionspace(rep_mesh_wb, ("CG", rep_degree, (dim,)))

    interp_data_vec = qugar.reparam.create_interpolation_data(Vrep, V)
    uh_rep = dolfinx.fem.Function(Vrep)
    uh_rep.interpolate_nonmatching(uh, *interp_data_vec)
    uh_rep.name = "solution"

    interp_data_wb = qugar.reparam.create_interpolation_data(Vrep_wb, V)
    uh_rep_wb = dolfinx.fem.Function(Vrep_wb)
    uh_rep_wb.interpolate_nonmatching(uh, *interp_data_wb)
    uh_rep_wb.name = "solution_wirebasket"

    results_folder = Path("results")
    results_folder.mkdir(exist_ok=True, parents=True)
    filename = results_folder / name

    with dolfinx.io.VTKFile(rep_mesh.comm, filename.with_suffix(".pvd"), "w") as vtk:
        vtk.write_function(uh_rep)
        vtk.write_function(uh_rep_wb)

Convergence Study

Perform the convergence study by solving on a sequence of refined meshes:

mesh_sizes = [4, 8, 16, 32, 64, 128]  # Cells per direction
fe_degree = 1

print("\n" + "=" * 70)
print("CONVERGENCE STUDY - Linear Poisson on Unit Square with Hole")
print("=" * 70)
print(f"FE degree: {fe_degree}")
print(f"Mesh sizes (cells/direction): {mesh_sizes}")
print("-" * 70)

results = {
    "mesh_size": [],
    "h": [],
    "n_dofs": [],
    "L2_error": [],
    "H1_error": [],
    "L2_rate": [],
    "H1_rate": [],
}

prev_L2 = None
prev_H1 = None
prev_h = None

for n_cells in mesh_sizes:
    mesh, uh, V = solve_poisson(n_cells, degree=fe_degree)

    h = np.linalg.norm(xmax - xmin) / n_cells
    n_dofs = V.dofmap.index_map.size_global

    L2_error, H1_error = compute_l2_h1_errors(uh, mesh)

    visualize = True
    if visualize:
        visualize_solution(mesh, uh, V, f"demo_poisson_plate_with_hole_{n_cells}")

    if prev_L2 is not None:
        L2_rate = np.log(prev_L2 / L2_error) / np.log(prev_h / h)
        H1_rate = np.log(prev_H1 / H1_error) / np.log(prev_h / h)
    else:
        L2_rate = None
        H1_rate = None

    results["mesh_size"].append(n_cells)
    results["h"].append(h)
    results["n_dofs"].append(n_dofs)
    results["L2_error"].append(L2_error)
    results["H1_error"].append(H1_error)
    results["L2_rate"].append(L2_rate)
    results["H1_rate"].append(H1_rate)

    L2_rate_str = f"{L2_rate:.2f}" if L2_rate is not None else "  - "
    H1_rate_str = f"{H1_rate:.2f}" if H1_rate is not None else "  - "

    print(
        f"n_cells={n_cells:2d} | h={h:.4f} | DOFs={n_dofs:6d} | "
        f"L² error={L2_error:.2e} (rate: {L2_rate_str}) | "
        f"H¹ error={H1_error:.2e} (rate: {H1_rate_str})"
    )

    prev_L2 = L2_error
    prev_H1 = H1_error
    prev_h = h

print("=" * 70)
print("\nExpected convergence rates:")
print(f"  L²: O(h^{fe_degree + 1})")
print(f"  H¹: O(h^{fe_degree})")

Plot Convergence

Generate convergence plots if matplotlib is available:

if has_matplotlib:
    fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(12, 5))

    h_array = np.array(results["h"])
    L2_array = np.array(results["L2_error"])
    H1_array = np.array(results["H1_error"])

    ax1.loglog(h_array, L2_array, "o-", linewidth=2, markersize=8, label="L² error")

    ref_h = h_array[0]
    ref_L2 = L2_array[0]
    ax1.loglog(
        h_array,
        ref_L2 * (h_array / ref_h) ** (fe_degree + 1),
        "k--",
        linewidth=1,
        alpha=0.5,
        label=f"O(h^{fe_degree + 1})",
    )

    ax1.set_xlabel("Mesh size h", fontsize=12)
    ax1.set_ylabel("Error", fontsize=12)
    ax1.set_title("L² Error Convergence", fontsize=13, fontweight="bold")
    ax1.grid(True, which="both", alpha=0.3)
    ax1.legend(fontsize=11)

    ax2.loglog(h_array, H1_array, "s-", linewidth=2, markersize=8, label="H¹ error")

    ref_H1 = H1_array[0]
    ax2.loglog(
        h_array,
        ref_H1 * (h_array / ref_h) ** (fe_degree),
        "k--",
        linewidth=1,
        alpha=0.5,
        label=f"O(h^{fe_degree})",
    )

    ax2.set_xlabel("Mesh size h", fontsize=12)
    ax2.set_ylabel("Error", fontsize=12)
    ax2.set_title("H¹ Error Convergence", fontsize=13, fontweight="bold")
    ax2.grid(True, which="both", alpha=0.3)
    ax2.legend(fontsize=11)

    plt.tight_layout()

    visualize = False

    results_folder = Path("results")
    results_folder.mkdir(exist_ok=True, parents=True)
    plt.savefig(results_folder / "demo_poisson_convergence.png", dpi=150)
    conv_plot = results_folder / "demo_poisson_convergence.png"
    print(f"\nConvergence plot saved to: {conv_plot}")
    plt.show()

Summary

Print summary of convergence results:

print("\nSummary of Results:")
print(f"Number of mesh refinements: {len(mesh_sizes)}")
print(f"Final mesh size: {mesh_sizes[-1]} × {mesh_sizes[-1]} elements")
print(f"Total DOFs in final solve: {results['n_dofs'][-1]}")
print(f"Final L² error: {results['L2_error'][-1]:.2e}")
print(f"Final H¹ error: {results['H1_error'][-1]:.2e}")

if results["L2_rate"][-1] is not None:
    print("\nAverage convergence rates:")
    # avg_L2_rate = np.mean([r for r in results["L2_rate"][1:] if r is not None])
    # avg_H1_rate = np.mean([r for r in results["H1_rate"][1:] if r is not None])
    avg_L2_rate = np.mean([r for r in results["L2_rate"][-2:] if r is not None])
    avg_H1_rate = np.mean([r for r in results["H1_rate"][-2:] if r is not None])
    print(f"  L²: {avg_L2_rate:.2f} (expected: {fe_degree + 1})")
    print(f"  H¹: {avg_H1_rate:.2f} (expected: {fe_degree})")

|

Convergence plot

Convergence plot
